8.2. Pgpool-II + Watchdog Setup Example

This section shows an example of streaming replication configuration using Pgpool-II. In this example, we use 3 Pgpool-II servers to manage PostgreSQL servers to create a robust cluster system and avoid the single point of failure or split brain.

PostgreSQL 13 is used in this configuration example. All scripts have been tested with PostgreSQL 95 and later.

8.2.1. Requirements

We assume that all the Pgpool-II servers and the PostgreSQL servers are in the same subnet.

8.2.2. Cluster System Configuration

We use 3 servers with CentOS 7.4. Let these servers be server1, server2, server3. We install PostgreSQL and Pgpool-II on each server.

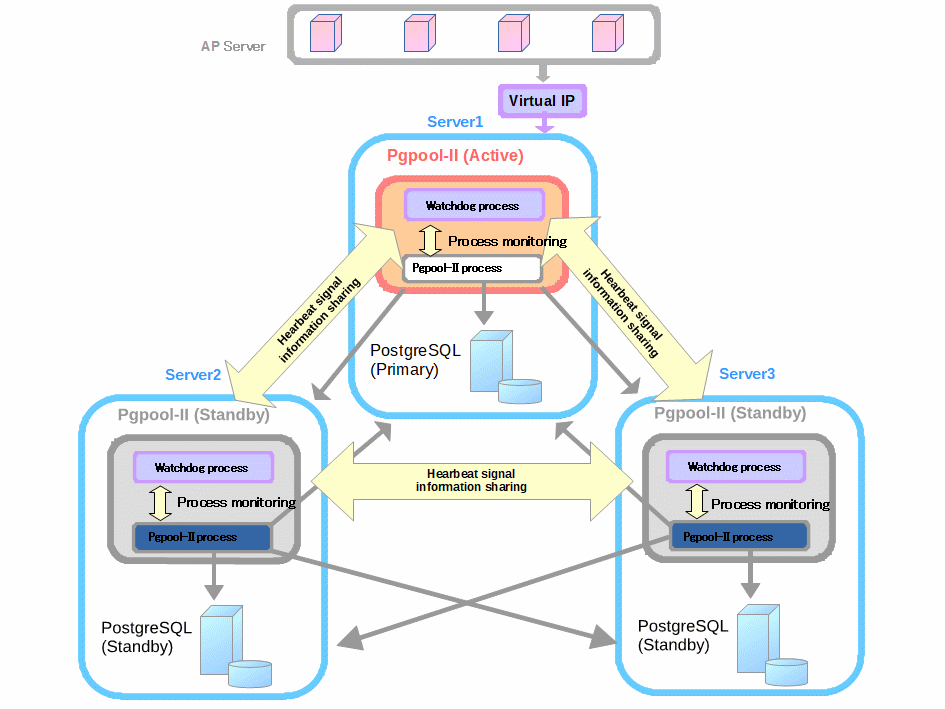

Figure 8-1. Cluster System Configuration

Note: The roles of Active, Standy, Primary, Standby are not fixed and may be changed by further operations.

Table 8-2. Hostname and IP address

Hostname	IP Address	Virtual IP
server1	192.168.137.101	192.168.137.150
server2	192.168.137.102
server3	192.168.137.103

Table 8-3. PostgreSQL version and Configuration

Item	Value	Detail
PostgreSQL Version	13.0	-
port	5432	-
$PGDATA	/var/lib/pgsql/13/data	-
Archive mode	on	/var/lib/pgsql/archivedir
Replication Slots	Enable	-
Start automatically	Enable	-

Table 8-4. Pgpool-II version and Configuration

Item	Value	Detail
Pgpool-II Version	4.2.0	-
port	9999	Pgpool-II accepts connections
	9898	PCP process accepts connections
	9000	watchdog accepts connections
	9694	UDP port for receiving Watchdog's heartbeat signal
Config file	/etc/pgpool-II/pgpool.conf	Pgpool-II config file
Pgpool-II start user	postgres (Pgpool-II 4.1 or later)	Pgpool-II 4.0 or before, the default startup user is root
Running mode	streaming replication mode	-
Watchdog	on	Life check method: heartbeat
Start automatically	Enable	-

Table 8-5. Various sample scripts included in rpm package

Feature	Script	Detail
Failover	/etc/pgpool-II/failover.sh.sample	Run by failover_command to perform failover
Failover	/etc/pgpool-II/follow_primary.sh.sample	Run by follow_primary_command to synchronize the Standby with the new Primary after failover.
Online recovery	/etc/pgpool-II/recovery_1st_stage.sample	Run by recovery_1st_stage_command to recovery a Standby node
Online recovery	/etc/pgpool-II/pgpool_remote_start.sample	Run after recovery_1st_stage_command to start the Standby node
Watchdog	/etc/pgpool-II/escalation.sh.sample	Run by wd_escalation_command to switch the Active/Standby Pgpool-II safely

The above scripts are included in the RPM package and can be customized as needed.

8.2.3. Installation

In this example, we install Pgpool-II 4.2 and PostgreSQL 13.0 using RPM packages.

Install PostgreSQL using PostgreSQL YUM repository.

# yum install -y https://download.postgresql.org/pub/repos/yum/reporpms/EL-7-x86_64/pgdg-redhat-repo-latest.noarch.rpm
# yum install -y postgresql13-server

Install Pgpool-II by using Pgpool-II YUM repository.

# yum install -y https://www.pgpool.net/yum/rpms/4.2/redhat/rhel-7-x86_64/pgpool-II-release-4.2-1.noarch.rpm
# yum install -y pgpool-II-pg13-*

8.2.4. Before Starting

Before you start the configuration process, please check the following prerequisites.

Set up PostgreSQL streaming replication on the primary server. In this example, we use WAL archiving.
First, we create the directory /var/lib/pgsql/archivedir to store WAL segments on all servers. In this example, only Primary node archives WAL locally.
```
[all servers]# su - postgres
[all servers]$ mkdir /var/lib/pgsql/archivedir

```
Then we edit the configuration file $PGDATA/postgresql.conf on server1 (primary) as follows. Enable wal_log_hints to use pg_rewind. Since the Primary may become a Standby later, we set hot_standby = on.
```
listen_addresses = '*'
archive_mode = on
archive_command = 'cp "%p" "/var/lib/pgsql/archivedir/%f"'
max_wal_senders = 10
max_replication_slots = 10
wal_level = replica
hot_standby = on
wal_log_hints = on

```
We use the online recovery functionality of Pgpool-II to setup standby server after the primary server is started.

Because of the security reasons, we create a user repl solely used for replication purpose, and a user pgpool for streaming replication delay check and health check of Pgpool-II.

Table 8-6. Users

User Name	Password	Detail
repl	repl	PostgreSQL replication user
pgpool	pgpool	Pgpool-II health check (health_check_user) and replication delay check (sr_check_user) user
postgres	postgres	User running online recovery

[server1]# psql -U postgres -p 5432
postgres=# SET password_encryption = 'scram-sha-256';
postgres=# CREATE ROLE pgpool WITH LOGIN;
postgres=# CREATE ROLE repl WITH REPLICATION LOGIN;
postgres=# \password pgpool
postgres=# \password repl
postgres=# \password postgres

If you want to show "replication_state" and "replication_sync_state" column in SHOW POOL NODES command result, role pgpool needs to be PostgreSQL super user or or in pg_monitor group (Pgpool-II 4.1 or later). Grant pg_monitor to pgpool:

GRANT pg_monitor TO pgpool;

Note: If you plan to use detach_false_primary(Pgpool-II 4.0 or later), role "pgpool" needs to be PostgreSQL super user or or in "pg_monitor" group to use this feature.

Assuming that all the Pgpool-II servers and the PostgreSQL servers are in the same subnet and edit pg_hba.conf to enable scram-sha-256 authentication method.

host    all             all             samenet                 scram-sha-256
host    replication     all             samenet                 scram-sha-256

To use the automated failover and online recovery of Pgpool-II, the settings that allow passwordless SSH to all backend servers between Pgpool-II execution user (default root user) and postgres user and between postgres user and postgres user are necessary. Execute the following command on all servers to set up passwordless SSH. The generated key file name is id_rsa_pgpool.
```
[all servers]# cd ~/.ssh
[all servers]# ssh-keygen -t rsa -f id_rsa_pgpool
[all servers]# ssh-copy-id -i id_rsa_pgpool.pub postgres@server1
[all servers]# ssh-copy-id -i id_rsa_pgpool.pub postgres@server2
[all servers]# ssh-copy-id -i id_rsa_pgpool.pub postgres@server3

[all servers]# su - postgres
[all servers]$ cd ~/.ssh
[all servers]$ ssh-keygen -t rsa -f id_rsa_pgpool
[all servers]$ ssh-copy-id -i id_rsa_pgpool.pub postgres@server1
[all servers]$ ssh-copy-id -i id_rsa_pgpool.pub postgres@server2
[all servers]$ ssh-copy-id -i id_rsa_pgpool.pub postgres@server3

```
After setting, use ssh postgres@serverX -i ~/.ssh/id_rsa_pgpool command to make sure that you can log in without entering a password. Edit /etc/ssh/sshd_config if necessary and restart sshd.

To allow repl user without specifying password for streaming replication and online recovery, and execute pg_rewind using postgres, we create the .pgpass file in postgres user's home directory and change the permission to 600 on each PostgreSQL server.

[all servers]# su - postgres
[all servers]$ vi /var/lib/pgsql/.pgpass
server1:5432:replication:repl:<repl user password>
server2:5432:replication:repl:<repl user password>
server3:5432:replication:repl:<repl user password>
server1:5432:postgres:postgres:<postgres user password>
server2:5432:postgres:postgres:<postgres user password>
server3:5432:postgres:postgres:<postgres user password>
[all servers]$ chmod 600  /var/lib/pgsql/.pgpass

When connect to Pgpool-II and PostgreSQL servers, the target port must be accessible by enabling firewall management softwares. Following is an example for CentOS/RHEL7.

[all servers]# firewall-cmd --permanent --zone=public --add-service=postgresql
[all servers]# firewall-cmd --permanent --zone=public --add-port=9999/tcp --add-port=9898/tcp --add-port=9000/tcp  --add-port=9694/udp
[all servers]# firewall-cmd --reload

We set Pgpool-II to start automatically on all servers.
```
[all servers]# systemctl enable pgpool.service

```
Note: If you set the auto-start of Pgpool-II, you need to change the search_primary_node_timeout to an appropriate value that you can start the PostgreSQL after the server has been started. Pgpool-II will fail if it can't connect to the PostgreSQL on the backend during the search_primary_node_timeout.

8.2.5. Create pgpool_node_id

From Pgpool-II 4.2, now all configuration parameters are identical on all hosts. If watchdog feature is enabled, to distingusish which host is which, a pgpool_node_id file is required. You need to create a pgpool_node_id file and specify the pgpool (watchdog) node number (e.g. 0, 1, 2 ...) to identify pgpool (watchdog) host.

server1

[server1]# cat /etc/pgpool-II/pgpool_node_id
0

server2

[server2]# cat /etc/pgpool-II/pgpool_node_id
1

server3

[server3]# cat /etc/pgpool-II/pgpool_node_id
2

8.2.6. Pgpool-II Configuration

Since from Pgpool-II 4.2, all configuration parameters are identical on all hosts, you can edit pgpool.conf on any pgpool node and copy the edited pgpool.conf file to the other pgpool nodes.

8.2.6.1. Clustering mode

Pgpool-II has several clustering modes. To set the clustering mode, backend_clustering_mode can be used. In this configuration example, streaming replication mode is used.

When installing Pgpool-II using RPM, all the Pgpool-II configuration sample files are in /etc/pgpool-II. In this example, we copy the sample configuration file for streaming replication mode.

# cp -p /etc/pgpool-II/pgpool.conf.sample-stream /etc/pgpool-II/pgpool.conf

8.2.6.2. listen_addresses

To allow Pgpool-II to accept all incoming connections, we set listen_addresses = '*'.

listen_addresses = '*'

8.2.6.3. port

Specify the port number Pgpool-II listen on.

port = 9999

8.2.6.4. Streaming Replication Check

Specify replication delay check user and password in sr_check_user and sr_check_password. In this example, we leave sr_check_password empty, and create the entry in pool_passwd. See Section 8.2.6.9 for how to create the entry in pool_passwd. From Pgpool-II 4.0, if these parameters are left blank, Pgpool-II will first try to get the password for that specific user from pool_passwd file before using the empty password.

sr_check_user = 'pgpool'
sr_check_password = ''

8.2.6.5. Health Check

Enable health check so that Pgpool-II performs failover. Also, if the network is unstable, the health check fails even though the backend is running properly, failover or degenerate operation may occur. In order to prevent such incorrect detection of health check, we set health_check_max_retries = 3. Specify health_check_user and health_check_password in the same way like sr_check_user and sr_check_password.

health_check_period = 5
                                            # Health check period
                                            # Disabled (0) by default
health_check_timeout = 30
                                            # Health check timeout
                                            # 0 means no timeout
health_check_user = 'pgpool'
health_check_password = ''

health_check_max_retries = 3

8.2.6.6. Backend Settings

Specify the PostgreSQL backend information. Multiple backends can be specified by adding a number at the end of the parameter name.

# - Backend Connection Settings -

backend_hostname0 = 'server1'
                                            # Host name or IP address to connect to for backend 0
backend_port0 = 5432
                                            # Port number for backend 0
backend_weight0 = 1
                                            # Weight for backend 0 (only in load balancing mode)
backend_data_directory0 = '/var/lib/pgsql/13/data'
                                            # Data directory for backend 0
backend_flag0 = 'ALLOW_TO_FAILOVER'
                                            # Controls various backend behavior
                                            # ALLOW_TO_FAILOVER or DISALLOW_TO_FAILOVER
backend_hostname1 = 'server2'
backend_port1 = 5432
backend_weight1 = 1
backend_data_directory1 = '/var/lib/pgsql/13/data'
backend_flag1 = 'ALLOW_TO_FAILOVER'

backend_hostname2 = 'server3'
backend_port2 = 5432
backend_weight2 = 1
backend_data_directory2 = '/var/lib/pgsql/13/data'
backend_flag2 = 'ALLOW_TO_FAILOVER'

To show "replication_state" and "replication_sync_state" column in SHOW POOL NODES command result, backend_application_name parameter is required. Here we specify each backend's hostname in these parameters. (Pgpool-II 4.1 or later)

...
backend_application_name0 = 'server1'
...
backend_application_name1 = 'server2'
...
backend_application_name2 = 'server3'

8.2.6.7. Failover configuration

Specify failover.sh script to be executed after failover in failover_command parameter. If we use 3 PostgreSQL servers, we need to specify follow_primary_command to run after failover on the primary node failover. In case of two PostgreSQL servers, follow_primary_command setting is not necessary.

Pgpool-II replaces the following special characters with the backend specific information while executing the scripts. See failover_command for more details about each character.

failover_command = '/etc/pgpool-II/failover.sh %d %h %p %D %m %H %M %P %r %R %N %S'
follow_primary_command = '/etc/pgpool-II/follow_primary.sh %d %h %p %D %m %H %M %P %r %R'

Note: %N and %S are added in Pgpool-II 4.1. Please note that these characters cannot be specified if using Pgpool-II 4.0 or earlier.

Sample scripts failover.sh and follow_primary.sh are installed in /etc/pgpool-II/. Create failover scripts using these sample files.

[all servers]# cp -p /etc/pgpool-II/failover.sh{.sample,}
[all servers]# cp -p /etc/pgpool-II/follow_primary.sh{.sample,}
[all servers]# chown postgres:postgres /etc/pgpool-II/{failover.sh,follow_primary.sh}

Basically, it should work if you change PGHOME according to PostgreSQL installation directory.

[all servers]# vi /etc/pgpool-II/failover.sh
...
PGHOME=/usr/pgsql-13
...

[all servers]# vi /etc/pgpool-II/follow_primary.sh
...
PGHOME=/usr/pgsql-13
...

Since user authentication is required to use the PCP command in follow_primary_command script, we need to specify user name and md5 encrypted password in pcp.conf in format "username:encrypted password".

if pgpool user is specified in PCP_USER in follow_primary.sh,

# cat /etc/pgpool-II/follow_primary.sh
...
PCP_USER=pgpool
...

then we use pg_md5 to create the encrypted password entry for pgpool user as below:

[all servers]# echo 'pgpool:'`pg_md5 PCP passowrd` >> /etc/pgpool-II/pcp.conf

Since follow_primary.sh script must execute PCP command without entering a password, we need to create .pcppass in the home directory of Pgpool-II startup user (postgres user) on each server.

[all servers]# su - postgres
[all servers]$ echo 'localhost:9898:pgpool:<pgpool user password>' > ~/.pcppass
[all servers]$ chmod 600 ~/.pcppass

Note: The follow_primary.sh script does not support tablespaces. If you are using tablespaces, you need to modify the script to support tablespaces.

8.2.6.8. Pgpool-II Online Recovery Configurations

Next, in order to perform online recovery with Pgpool-II we specify the PostgreSQL user name and online recovery command recovery_1st_stage. Because Superuser privilege in PostgreSQL is required for performing online recovery, we specify postgres user in recovery_user. Then, we create recovery_1st_stage and pgpool_remote_start in database cluster directory of PostgreSQL primary server (server1), and add execute permission.

recovery_user = 'postgres'
                                            # Online recovery user
recovery_password = ''
                                            # Online recovery password

recovery_1st_stage_command = 'recovery_1st_stage'

Online recovery sample scriptsrecovery_1st_stage and pgpool_remote_start are installed in /etc/pgpool-II/. Copy these files to the data directory of the primary server (server1).

[server1]# cp -p /etc/pgpool-II/recovery_1st_stage.sample /var/lib/pgsql/13/data/recovery_1st_stage
[server1]# cp -p /etc/pgpool-II/pgpool_remote_start.sample /var/lib/pgsql/13/data/pgpool_remote_start
[server1]# chown postgres:postgres /var/lib/pgsql/13/data/{recovery_1st_stage,pgpool_remote_start}

Basically, it should work if you change PGHOME according to PostgreSQL installation directory.

[server1]# vi /var/lib/pgsql/13/data/recovery_1st_stage
...
PGHOME=/usr/pgsql-13
...

[server1]# vi /var/lib/pgsql/13/data/pgpool_remote_start
...
PGHOME=/usr/pgsql-13
...

In order to use the online recovery functionality, the functions of pgpool_recovery, pgpool_remote_start, pgpool_switch_xlog are required, so we need install pgpool_recovery on template1 of PostgreSQL server server1.

[server1]# su - postgres
[server1]$ psql template1 -c "CREATE EXTENSION pgpool_recovery"

Note: The recovery_1st_stage script does not support tablespaces. If you are using tablespaces, you need to modify the script to support tablespaces.

8.2.6.9. Client Authentication Configuration

Because in the section Before Starting, we already set PostgreSQL authentication method to scram-sha-256, it is necessary to set a client authentication by Pgpool-II to connect to backend nodes. When installing with RPM, the Pgpool-II configuration file pool_hba.conf is in /etc/pgpool-II. By default, pool_hba authentication is disabled, set enable_pool_hba = on to enable it.

enable_pool_hba = on

The format of pool_hba.conf file follows very closely PostgreSQL's pg_hba.conf format. Set pgpool and postgres user's authentication method to scram-sha-256.

host    all         pgpool           0.0.0.0/0          scram-sha-256
host    all         postgres         0.0.0.0/0          scram-sha-256

Note: Please note that in Pgpool-II 4.0 only AES encrypted password or clear text password can be specified in health_check_password, sr_check_password, wd_lifecheck_password, recovery_password in pgpool.conf.

The default password file name for authentication is pool_passwd. To use scram-sha-256 authentication, the decryption key to decrypt the passwords is required. We create the .pgpoolkey file in Pgpool-II start user postgres's (Pgpool-II 4.1 or later) home directory. (Pgpool-II 4.0 or before, by default Pgpool-II is started as root)

[all servers]# su - postgres
[all servers]$ echo 'some string' > ~/.pgpoolkey
[all servers]$ chmod 600 ~/.pgpoolkey

Execute command pg_enc -m -k /path/to/.pgpoolkey -u username -p to register user name and AES encrypted password in file pool_passwd. If pool_passwd doesn't exist yet, it will be created in the same directory as pgpool.conf.

[all servers]# su - postgres
[all servers]$ pg_enc -m -k ~/.pgpoolkey -u pgpool -p
db password: [pgpool user's password]
[all servers]$ pg_enc -m -k ~/.pgpoolkey -u postgres -p
db password: [postgres user's passowrd]

# cat /etc/pgpool-II/pool_passwd
pgpool:AESheq2ZMZjynddMWk5sKP/Rw==
postgres:AESHs/pWL5rtXy2IwuzroHfqg==

8.2.6.10. Watchdog Configuration

Enable watchdog functionality on server1, server2, server3.

use_watchdog = on

Specify virtual IP address that accepts connections from clients on server1, server2, server3. Ensure that the IP address set to virtual IP isn't used yet.

delegate_IP = '192.168.137.150'

To bring up/down the virtual IP and send the ARP requests, we set if_up_cmd, if_down_cmd and arping_cmd. The network interface used in this example is "enp0s8". Since root privilege is required to execute if_up/down_cmd or arping_cmd command, use setuid on these command or allow Pgpool-II startup user, postgres user (Pgpool-II 4.1 or later) to run sudo command without a password.

Note: If Pgpool-II is installed using RPM, the postgres user has been configured to run ip/arping via sudo without a password.
postgres ALL=NOPASSWD: /sbin/ip
postgres ALL=NOPASSWD: /usr/sbin/arping


Here we configure the following parameters to run if_up/down_cmd or arping_cmd with sudo.

if_up_cmd = '/usr/bin/sudo /sbin/ip addr add $_IP_$/24 dev enp0s8 label enp0s8:0'
if_down_cmd = '/usr/bin/sudo /sbin/ip addr del $_IP_$/24 dev enp0s8'
arping_cmd = '/usr/bin/sudo /usr/sbin/arping -U $_IP_$ -w 1 -I enp0s8'

Note: If "Defaults requiretty" is set in the /etc/sudoers, please ensure that the pgpool startup user can execute the if_up_cmd, if_down_cmd and arping_cmd command without a tty.

Set if_cmd_path and arping_path according to the command path. If if_up/down_cmd or arping_cmd starts with "/", these parameters will be ignored.

if_cmd_path = '/sbin'
arping_path = '/usr/sbin'

Specify all Pgpool-II nodes information for configuring watchdog. Specify pgpool_portX using the port number specified in port in Section 8.2.6.3.

hostname0 = 'server1'
                                    # Host name or IP address of pgpool node
                                    # for watchdog connection
                                    # (change requires restart)
wd_port0 = 9000
                                    # Port number for watchdog service
                                    # (change requires restart)
pgpool_port0 = 9999
                                    # Port number for pgpool
                                    # (change requires restart)

hostname1 = 'server2'
wd_port1 = 9000
pgpool_port1 = 9999

hostname2 = 'server3'
wd_port2 = 9000
pgpool_port2 = 9999

Specify the method of lifecheck wd_lifecheck_method and the lifecheck interval wd_interval. Here, we use hearbeat method to perform watchdog lifecheck.

wd_lifecheck_method = 'heartbeat'
                                    # Method of watchdog lifecheck ('heartbeat' or 'query' or 'external')
                                    # (change requires restart)
wd_interval = 10
                                    # lifecheck interval (sec) > 0
                                    # (change requires restart)

Specify all Pgpool-II nodes information for sending and receiving heartbeat signal.

heartbeat_hostname0 = 'server1'
                                    # Host name or IP address used
                                    # for sending heartbeat signal.
                                    # (change requires restart)
heartbeat_port0 = 9694
                                    # Port number used for receiving/sending heartbeat signal
                                    # Usually this is the same as heartbeat_portX.
                                    # (change requires restart)
heartbeat_device0 = ''
                                    # Name of NIC device (such like 'eth0')
                                    # used for sending/receiving heartbeat
                                    # signal to/from destination 0.
                                    # This works only when this is not empty
                                    # and pgpool has root privilege.
                                    # (change requires restart)

heartbeat_hostname1 = 'server2'
heartbeat_port1 = 9694
heartbeat_device1 = ''
heartbeat_hostname2 = 'server3'
heartbeat_port2 = 9694
heartbeat_device2 = ''

If the wd_lifecheck_method is set to heartbeat, specify the time to detect a fault wd_heartbeat_deadtime and the interval to send heartbeat signals wd_heartbeat_deadtime.

wd_heartbeat_keepalive = 2
                                    # Interval time of sending heartbeat signal (sec)
                                    # (change requires restart)
wd_heartbeat_deadtime = 30
                                    # Deadtime interval for heartbeat signal (sec)
                                    # (change requires restart)

When Watchdog process is abnormally terminated, the virtual IP may be "up" on both of the old and new active pgpool nodes. To prevent this, configure wd_escalation_command to bring down the virtual IP on other pgpool nodes before bringing up the virtual IP on the new active pgpool node.

wd_escalation_command = '/etc/pgpool-II/escalation.sh'
                                    # Executes this command at escalation on new active pgpool.
                                    # (change requires restart)

The sample script escalation.sh is installed in /etc/pgpool-II/.

[all servers]# cp -p /etc/pgpool-II/escalation.sh{.sample,}
[all servers]# chown postgres:postgres /etc/pgpool-II/escalation.sh

Basically, it should work if you change the following variables according to your environment. PGPOOL is tha array of the hostname that runnig Pgpool-II. VIP is the virtual IP address that you set as delegate_IP. DEVICE is the network interface for the virtual IP.

[all servers]# vi /etc/pgpool-II/escalation.sh
...
PGPOOLS=(server1 server2 server3)
VIP=192.168.137.150
DEVICE=enp0s8
...

Note: If you have even number of watchdog nodes, you need to turn on enable_consensus_with_half_votes parameter.

Note: If use_watchdog = on, please make sure the pgpool node number is specified in pgpool_node_id file. See Section 8.2.5 for details.

8.2.6.11. Logging

Since Pgpool-II 4.2, the logging collector process has been implemented. In the example, we enable logging collector.

log_destination = 'stderr'
logging_collector = on
log_directory = '/var/log/pgpool_log'
log_filename = 'pgpool-%Y-%m-%d_%H%M%S.log'
log_truncate_on_rotation = on
log_rotation_age = 1d
log_rotation_size = 10MB

Create the log directory on all servers.

[all servers]# mkdir /var/log/pgpool_log/
[all servers]# chown postgres:postgres /var/log/pgpool_log/

The configuration of pgpool.conf on server1 is completed. Copy the pgpool.conf to other Pgpool-II nodes (server2 and server3).

[server1]# scp -p /etc/pgpool-II/pgpool.conf root@server2:/etc/pgpool-II/pgpool.conf
[server1]# scp -p /etc/pgpool-II/pgpool.conf root@server3:/etc/pgpool-II/pgpool.conf

8.2.7. /etc/sysconfig/pgpool Configuration

When starting Pgpool-II, if the pgpool_status file exists, Pgpool-II will read the backend status (up/down) from the pgpool_status file.

If you want to ignore the pgpool_status file at startup of Pgpool-II, add "- D" to the start option OPTS to /etc/sysconfig/pgpool.

[all servers]# vi /etc/sysconfig/pgpool
...
OPTS=" -D -n"

8.2.8. Starting/Stopping Pgpool-II

Next we start Pgpool-II. Before starting Pgpool-II, please start PostgreSQL servers first. Also, when stopping PostgreSQL, it is necessary to stop Pgpool-II first.

Starting Pgpool-II
In section Before Starting, we already set the auto-start of Pgpool-II. To start Pgpool-II, restart the whole system or execute the following command.
```
# systemctl start pgpool.service

```
Stopping Pgpool-II
```
# systemctl stop pgpool.service

```

8.2.9. How to use

Let's start to use Pgpool-II. First, let's start Pgpool-II on server1, server2, server3 by using the following command.

# systemctl start pgpool.service

8.2.9.1. Set up PostgreSQL standby server

First, we should set up PostgreSQL standby server by using Pgpool-II online recovery functionality. Ensure that recovery_1st_stage and pgpool_remote_start scripts used by pcp_recovery_node command are in database cluster directory of PostgreSQL primary server (server1).

# pcp_recovery_node -h 192.168.137.150 -p 9898 -U pgpool -n 1
Password:
pcp_recovery_node -- Command Successful

# pcp_recovery_node -h 192.168.137.150 -p 9898 -U pgpool -n 2
Password:
pcp_recovery_node -- Command Successful

After executing pcp_recovery_node command, verify that server2 and server3 are started as PostgreSQL standby server.

# psql -h 192.168.137.150 -p 9999 -U pgpool postgres -c "show pool_nodes"
Password for user pgpool
node_id | hostname | port | status | lb_weight |  role   | select_cnt | load_balance_node | replication_delay | replication_state | replication_sync_state | last_status_change
---------+----------+------+--------+-----------+---------+------------+-------------------+-------------------+-------------------+------------------------+---------------------
0       | server1  | 5432 | up     | 0.333333  | primary | 0          | false             | 0                 |                   |                        | 2019-08-06 11:13:17
1       | server2  | 5432 | up     | 0.333333  | standby | 0          | true              | 0                 | streaming         | async                  | 2019-08-06 11:13:25
2       | server3  | 5432 | up     | 0.333333  | standby | 0          | false             | 0                 | streaming         | async                  | 2019-08-06 11:14:20
(3 rows)

8.2.9.2. Switching active/standby watchdog

Confirm the watchdog status by using pcp_watchdog_info. The Pgpool-II server which is started first run as LEADER.

# pcp_watchdog_info -h 192.168.137.150 -p 9898 -U pgpool
Password:
3 YES server1:9999 Linux server1 server1

server1:9999 Linux server1 server1 9999 9000 4 LEADER  #The Pgpool-II server started first becames "LEADER".
server2:9999 Linux server2 server2 9999 9000 7 STANDBY #run as standby
server3:9999 Linux server3 server3 9999 9000 7 STANDBY #run as standby

Stop active server server1, then server2 or server3 will be promoted to active server. To stop server1, we can stop Pgpool-II service or shutdown the whole system. Here, we stop Pgpool-II service.

[server1]# systemctl stop pgpool.service

# pcp_watchdog_info -p 9898 -h 192.168.137.150 -U pgpool
Password:
3 YES server2:9999 Linux server2 server2

server2:9999 Linux server2 server2 9999 9000 4 LEADER     #server2 is promoted to LEADER
server1:9999 Linux server1 server1 9999 9000 10 SHUTDOWN  #server1 is stopped
server3:9999 Linux server3 server3 9999 9000 7 STANDBY    #server3 runs as STANDBY

Start Pgpool-II (server1) which we have stopped again, and verify that server1 runs as a standby.

[server1]# systemctl start pgpool.service

[server1]# pcp_watchdog_info -p 9898 -h 192.168.137.150 -U pgpool
Password:
3 YES server2:9999 Linux server2 server2

server2:9999 Linux server2 server2 9999 9000 4 LEADER
server1:9999 Linux server1 server1 9999 9000 7 STANDBY
server3:9999 Linux server3 server3 9999 9000 7 STANDBY

8.2.9.3. Failover

First, use psql to connect to PostgreSQL via virtual IP, and verify the backend information.

# psql -h 192.168.137.150 -p 9999 -U pgpool postgres -c "show pool_nodes"
Password for user pgpool:
node_id | hostname | port | status | lb_weight |  role   | select_cnt | load_balance_node | replication_delay | replication_state | replication_sync_state | last_status_change
---------+----------+------+--------+-----------+---------+------------+-------------------+-------------------+-------------------+------------------------+---------------------
0       | server1  | 5432 | up     | 0.333333  | primary | 0          | false             | 0                 |                   |                        | 2019-08-06 11:13:17
1       | server2  | 5432 | up     | 0.333333  | standby | 0          | true              | 0                 | streaming         | async                  | 2019-08-06 11:13:25
2       | server3  | 5432 | up     | 0.333333  | standby | 0          | false             | 0                 | streaming         | async                  | 2019-08-06 11:14:20
(3 rows)

Next, stop primary PostgreSQL server server1, and verify automatic failover.

[server1]$ pg_ctl -D /var/lib/pgsql/13/data -m immediate stop

After stopping PostgreSQL on server1, failover occurs and PostgreSQL on server2 becomes new primary DB.

# psql -h 192.168.137.150 -p 9999 -U pgpool postgres -c "show pool_nodes"
Password for user pgpool:
node_id | hostname | port | status | lb_weight |  role   | select_cnt | load_balance_node | replication_delay | replication_state | replication_sync_state | last_status_change
---------+----------+------+--------+-----------+---------+------------+-------------------+-------------------+-------------------+------------------------+---------------------
0       | server1  | 5432 | down   | 0.333333  | standby | 0          | false             | 0                 |                   |                        | 2019-08-06 11:36:03
1       | server2  | 5432 | up     | 0.333333  | primary | 0          | true              | 0                 |                   |                        | 2019-08-06 11:36:03
2       | server3  | 5432 | up     | 0.333333  | standby | 0          | false             | 0                 | streaming         | async                  | 2019-08-06 11:36:15
(3 rows)

server3 is running as standby of new primary server2.

[server3]# psql -h server3 -p 5432 -U pgpool postgres -c "select pg_is_in_recovery()"
pg_is_in_recovery
-------------------
t

[server2]# psql -h server2 -p 5432 -U pgpool postgres -c "select pg_is_in_recovery()"
pg_is_in_recovery
-------------------
f

[server2]# psql -h server2 -p 5432 -U pgpool postgres -c "select * from pg_stat_replication" -x
-[ RECORD 1 ]----+------------------------------
pid              | 11059
usesysid         | 16392
usename          | repl
application_name | server3
client_addr      | 192.168.137.103
client_hostname  |
client_port      | 48694
backend_start    | 2019-08-06 11:36:07.479161+09
backend_xmin     |
state            | streaming
sent_lsn         | 0/75000148
write_lsn        | 0/75000148
flush_lsn        | 0/75000148
replay_lsn       | 0/75000148
write_lag        |
flush_lag        |
replay_lag       |
sync_priority    | 0
sync_state       | async
reply_time       | 2019-08-06 11:42:59.823961+09

8.2.9.4. Online Recovery

Here, we use Pgpool-II online recovery functionality to restore server1 (old primary server) as a standby. Before restoring the old primary server, please ensure that recovery_1st_stage and pgpool_remote_start scripts exist in database cluster directory of current primary server server2.

# pcp_recovery_node -h 192.168.137.150 -p 9898 -U pgpool -n 0
Password:
pcp_recovery_node -- Command Successful

Then verify that server1 is started as a standby.

# psql -h 192.168.137.150 -p 9999 -U pgpool postgres -c "show pool_nodes"
Password for user pgpool:
node_id | hostname | port | status | lb_weight |  role   | select_cnt | load_balance_node | replication_delay | replication_state | replication_sync_state | last_status_change
---------+----------+------+--------+-----------+---------+------------+-------------------+-------------------+-------------------+------------------------+---------------------
0       | server1  | 5432 | up     | 0.333333  | standby | 0          | false             | 0                 | streaming         | async                  | 2019-08-06 11:48:05
1       | server2  | 5432 | up     | 0.333333  | primary | 0          | false             | 0                 |                   |                        | 2019-08-06 11:36:03
2       | server3  | 5432 | up     | 0.333333  | standby | 0          | true              | 0                 | streaming         | async                  | 2019-08-06 11:36:15
(3 rows)

Prev	Home	Next
Basic Configuration Example	Up	AWS Configuration Example
